Description:
THIS IS THE COMBO INCLUDING 2 X MOTORS, 2 X ESC, 2 PROPELLERS (IN CW & CCW)
IF YOU NEED MTOW IS 140KG, TWO COMBOs NEED TO PUT INTO YOUR SYSTEM WHICH MEANS 4 X MOTORS, 4 X ESC, AND 4 CF PROPELLERS (2 IN CW & 2 IN CCW). OR MTOW IS 360KG BY 8 X MOTORS/8 X ESC X 8 PROPS. SINGLE AXLE THRUST 45KG. MAX IS 68KG/AXLE. WITH 65% THROTTLE TO HOLD 45KG THRUST.
MOTOR DATA

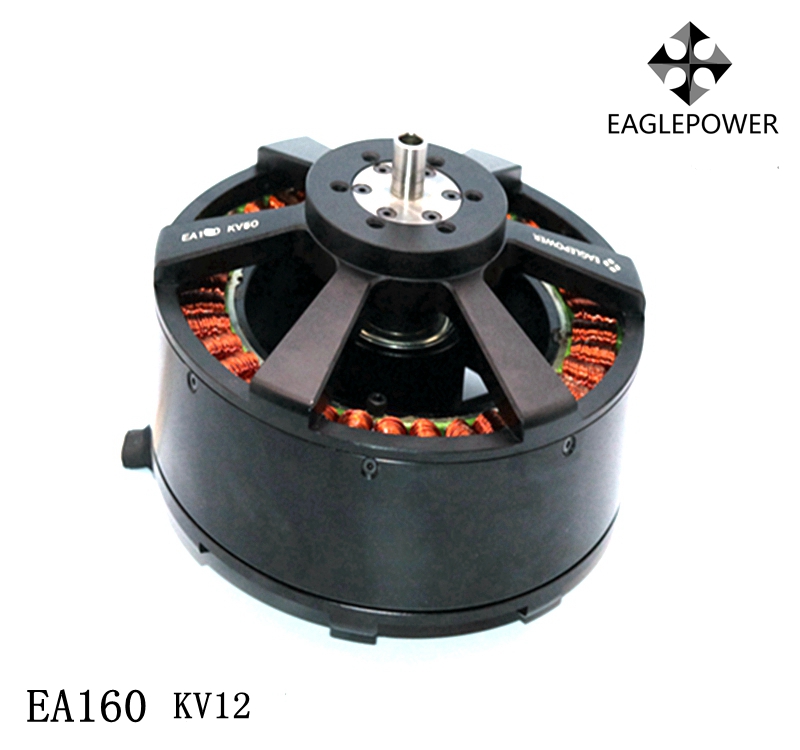

MODEL: EA160 KV12
WEIGHT: 3168G
DIMENTIO: φ148.8*87.2 mm
ESC
MODEL: EP-40A-HV 120S (300-500V)
WEIGHT:920G
DIMENTION: 193*73*51 mm
CF PROPELLER
MODEL: UC47X13
WEIGHT: 400G
LENGHT: L1195 mm
SUITABLE FOR HV IN 300-500V VERY HIGH VOLTAGE
-
