Makeflyeasy 1960mm Believer Wingspan EPO Portable Aerial Survey Aircraft KIT/PNP/PPK Optional Version (Global Warehouse)
(21894)
Wholesale price:
USD $274.00

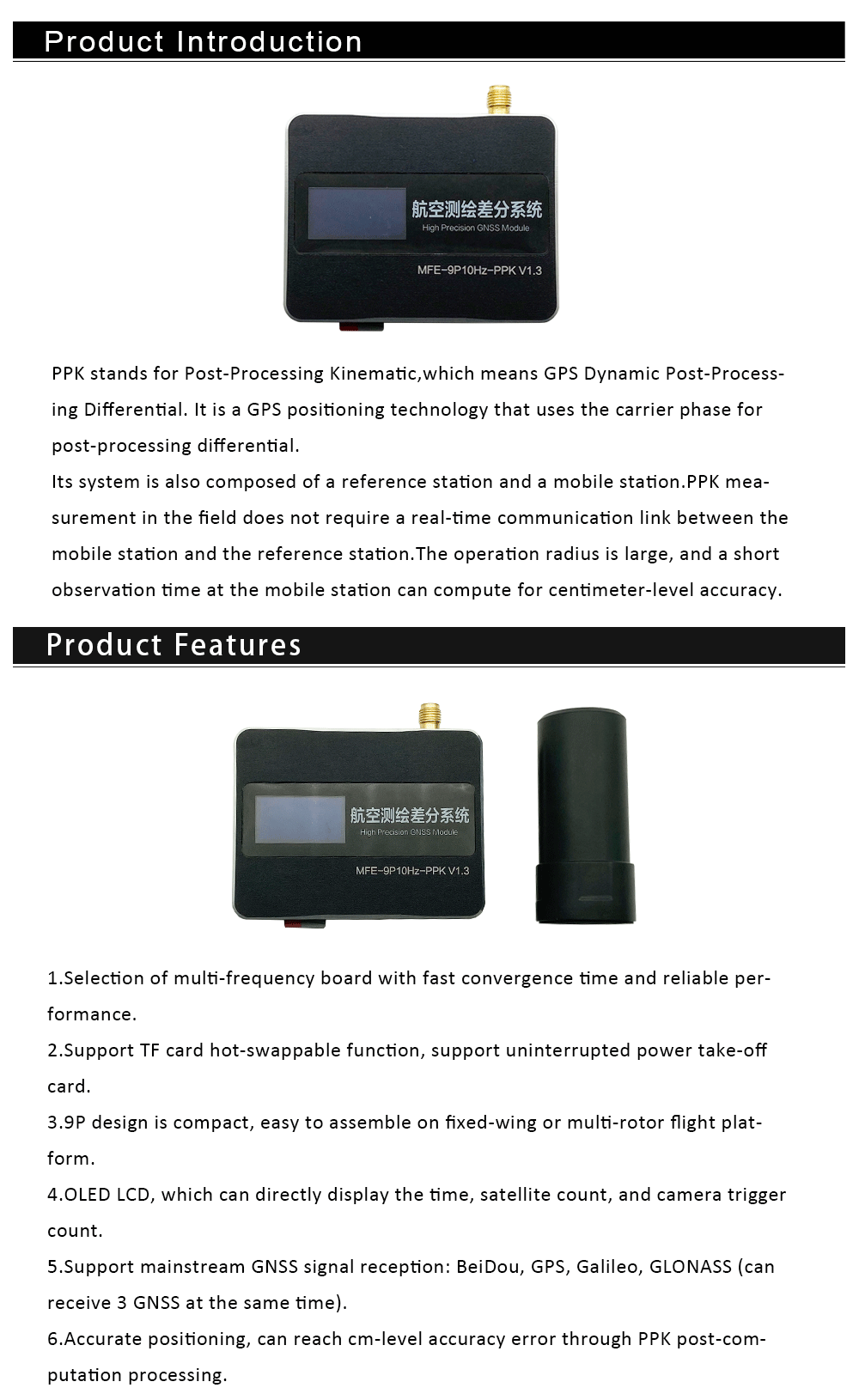

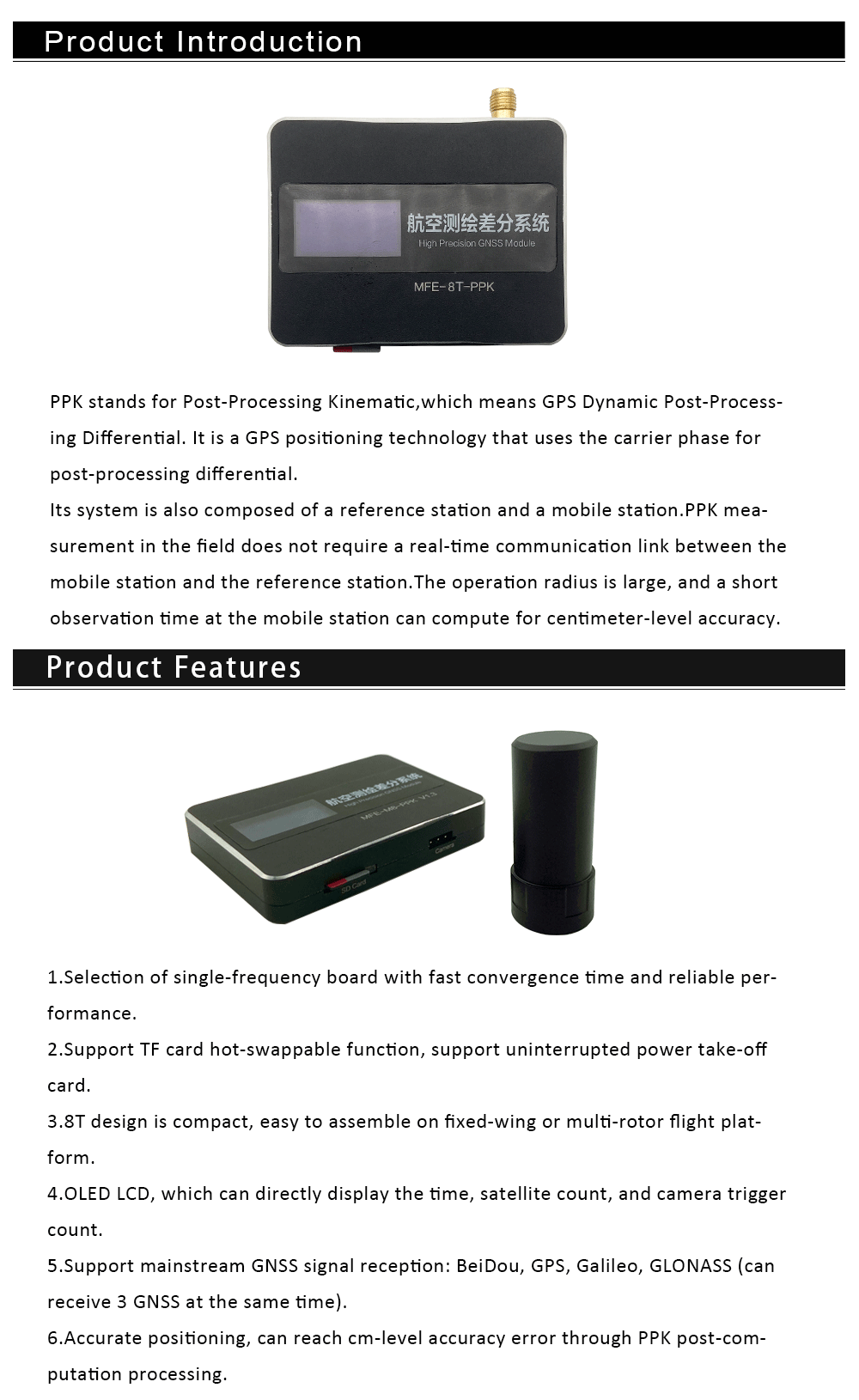

- PPK System
- version
- Quantity: Add to Cart Buy Now
- Add to Wish List
Ready Time: About Days

Weight: 23.5(kg)
The color of the product may differ slightly from the actual product depending on the browser, PC monitor environment and settings.
Coupon: Get $5 for new members. Sign In>>

Description:

Description:
Believer is a flight platform with industry class aerial survey. It has the characteristics of portability, easy operation, friendly operation, stability and durability. The whole assembly of modular design make phototopography simple and quick,quick detachable wings,the ventral shock absorption and energy release enables the aircraft to have good portability and excellent user experience. Stratified design of the flight control cabin,the camera cabin can carry 4200W pixel camera,the battery compartment can accommodate a 6S 22000mah Lipo battery,bringing long battery life and high quality shooting effect. With the flight control system, telemetry system, power system, image system can obtain stable and safe flight performance, can be applied to terrain mapping, agriculture, forestry, animal husbandry protection, power inspection line, environmental protection, water and so on.

Specification:
Item Name: Believer
Material: EPO,EVA,carbon fibre,engineering plastic,and etc.
Wingspan: 1960mm
Fuselage Length: 1070mm
Fuselage Height: 180mm
Wing Load: 51.4dm⊃2;
Recommended Take-off Weight: 4.2kg
Max. Take-off Weight: 5.5kg
Recommended Flying Speed: 20m/s
Stalling Speed: 10m/s
CG: 1.5cm towards the back of the center of front carbon rod

Recommended Part for Believer (Not Included):
Motor: 2x Sunnysky 2814 KV900 or 2814 KV510
ESC: 2x Hobbywing X-Rotor 40A
Servo: 4x Emax ES3154
Propeller: APC 1145
Battery: 4S 20000mAh or 6S 16000mAh
Charger: Balance Charger
Radio System: 2.4G 7CH
Flight Controller: Pixhawk Flight controller
Video Transmitter and Receiver

Test Data:

4S Test Power Configuration		6S Test Power Configuration
Species	Model	Model	Quantity
Motor	Sunnysky 2814 KV900	LDPOWER 2814 KV510	2
ESC	Hobbywing X-Rotor 40A	Hobbywing X-Rotor 40A	2
Servo	Emax ES3154	Emax ES3154	4
Propeller	APC1145 CW&CCW	APC1145 CW&CCW	1 Pair
Battery	4S 20000mAh	6S 16000mAh	1
Max. Pull	About 4.5kg	About 4.5kg
Load Weight	a6000(440g)	a7r(670g)	1
Take-off Weight	About 4.2kg(included load 440g)	About 4.5kg(included load 670g)
Endurance	About 80km	About 90km
Test Conditions	Altitude: 470m Wind Speed: Level 3

Feature:
EPO materail,lightweight and durable.
Hatch cabin inching design,convenient and reliable.
Bigger and more reasonable fuselage capacity.
ESC hatch cover can be removed,easy to replace the ESC.
Aileron servo can be removed,no need to modify the servo cable.
Bottom buffer layer design,reduce landing impact, protect fuselage and camera.
Ergonomic design of rear fuselage,to make lifting easier and throwing more stable.
Support tilt photography,meet the 1:1000 and 1:1200 aerial survey.
Support hand throwing and parachute landing fall.

Installation Attention:
- In the welding of high current connector, we must pay attention to the welding line sequence to correspond to each other, so as not to burn ESC and servo.
- Rcommend to use the Emax ES3154 digital servo, or other servos with the same size and servo horn, easy to install the servo, and the installation of the vertical stabilizer quick release device.

Flying Attention:
- Please avoid flying and swerving at 10m/s, so as to avoid stalling.
- Before the flight, please be sure to check the motor and the propeller are installed correctly and secure, the ESC signal line and the power cord plug connection is reliable and reliable.

PNP version includes: (all electronic gears for PNP are packed up in the box, the end user needs to put together by themself)
