Skydroid H16 / H16 GCS 2.4GHz 1080P TX/RX Radio 5-30Km combo w/2x UP600W charger for Andrew's team project

Details

Specifications:

Brand Name: Skydroid

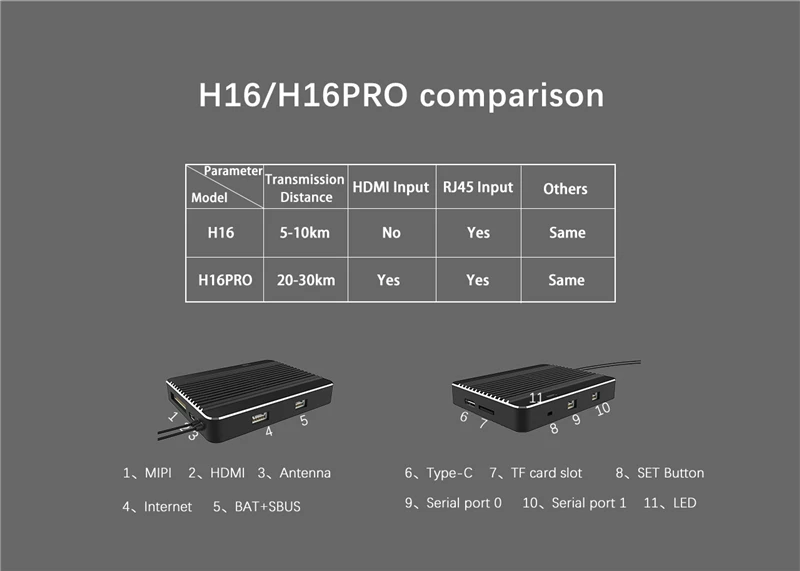

Item Name: H16 / H16PRO Transmitter Set

Number of channels: 16 channels

Frequency: 2.400-2.483GHz

Working voltage: 4.2V

Working Current: 100mA

RF Power: 20DB@CE/23DB@FCC

Modulation: New FHSS

Weight: 1034g

Firmware: APP online

Dimension: 272*183*94mm

Duration: 6-20 hours

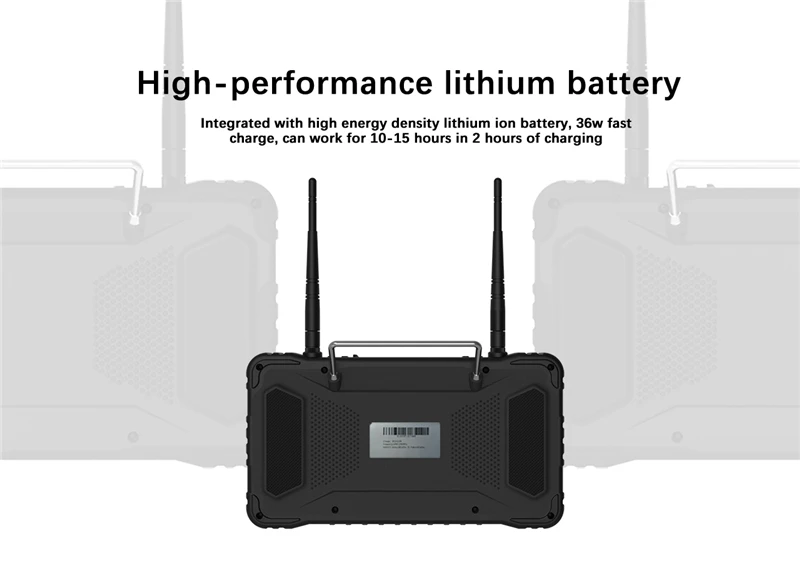

Battery Capacitor: 20000mA

Charge Port: Type-C

Application: Helicopter,Fixed wing,Quadcopter,car boat



Receiver and Camera:

R16 MIPI
Working voltage: 7.2-72V
Working voltage: 14-72V
Number of channels: 16CH
Working Current: 140mA (Open Light)
RF Power: 20DB@CE/23DB@FCC
Working Current: 14mA (Not Open Light)

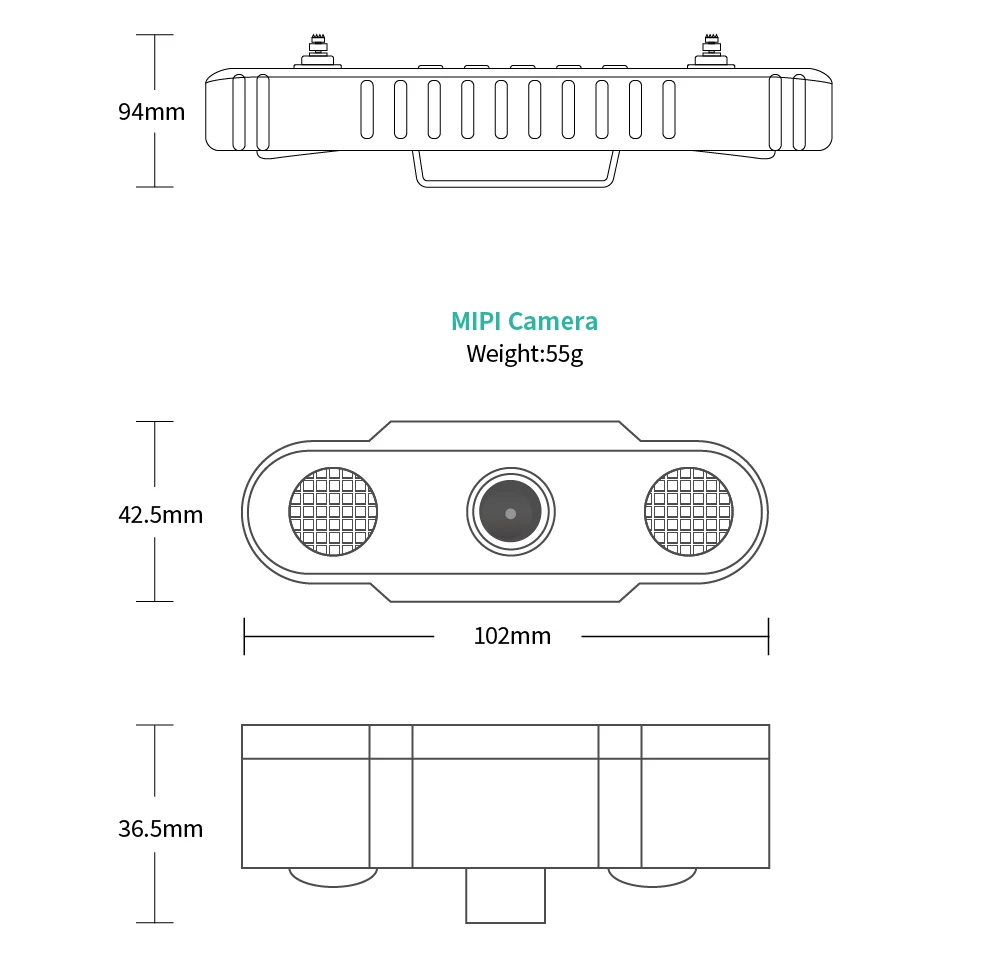

Size: 76*59*11 MM Size: 102.1*42.6*36.5 MM
Weight: 90g Weight: 55g

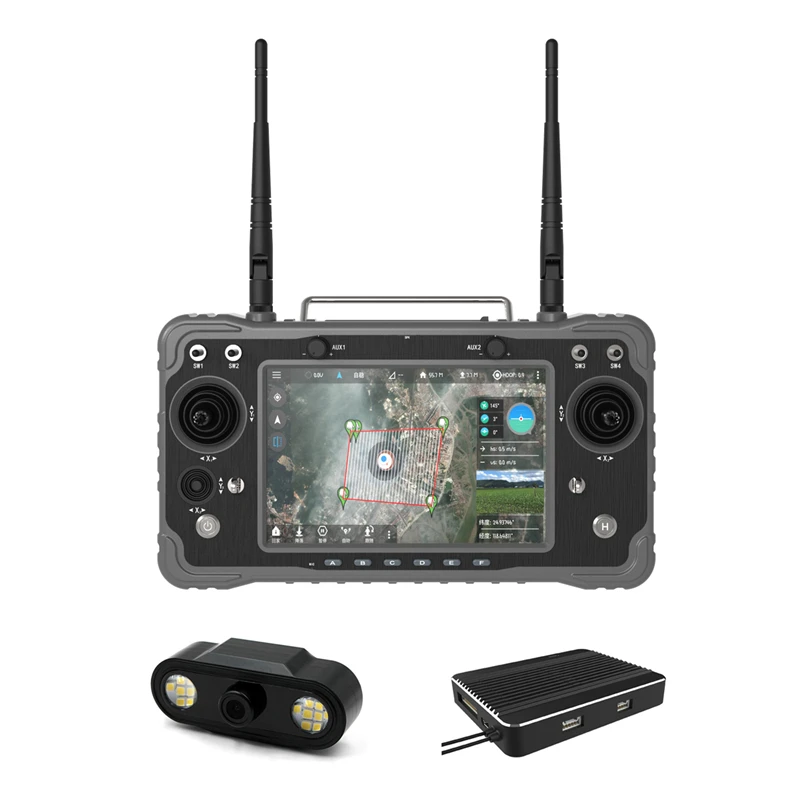

Package Included:

1 x H16 / H16 Pro Transmitter (optional)

1 x R16 Receiver

1 x MIPI Camera







vawn537p

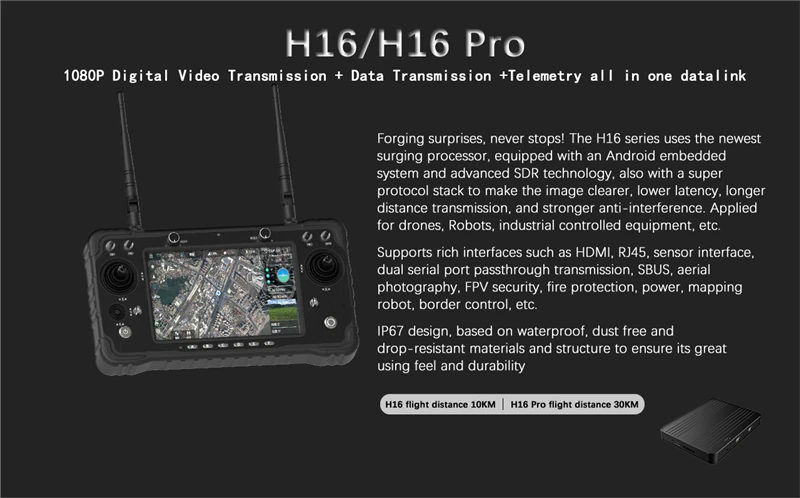

1080P Digital Video Transmission + Data Transmission +Telemetry all in one datalink
